Ultrashield 100% Solids Self Priming & Self-Levelling Epoxy Flooring Resin

Professional-grade epoxy for seamless, high-performance floors.

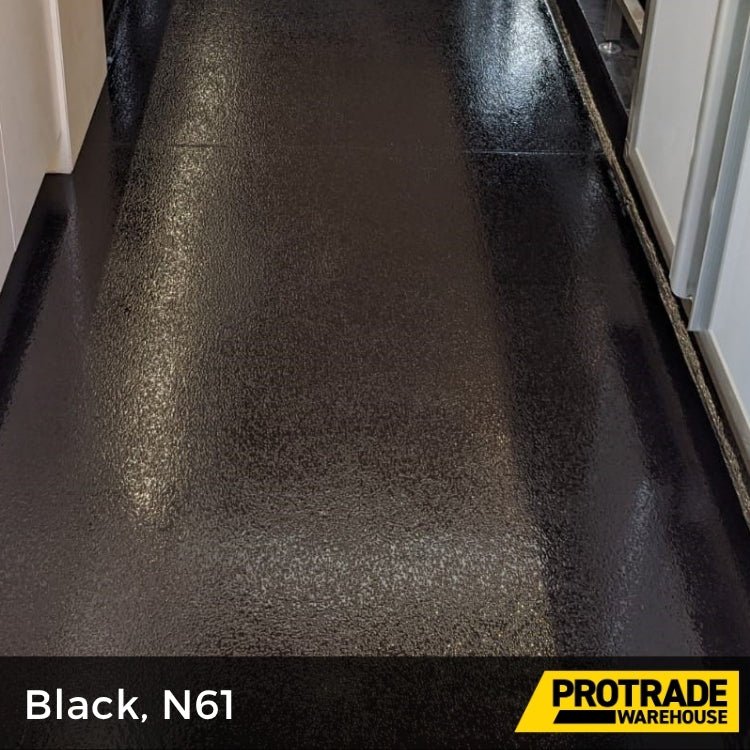

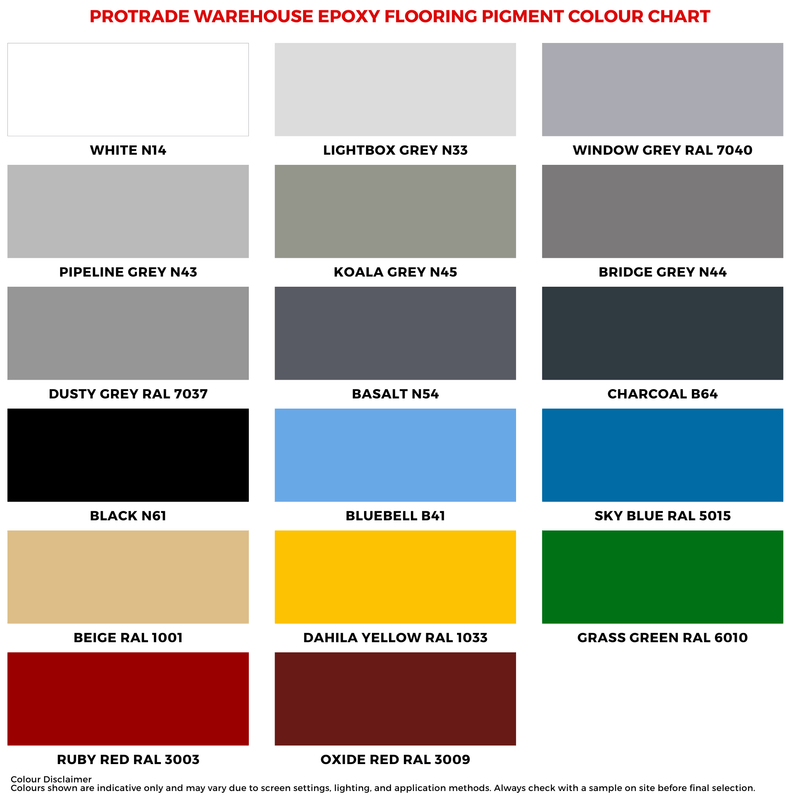

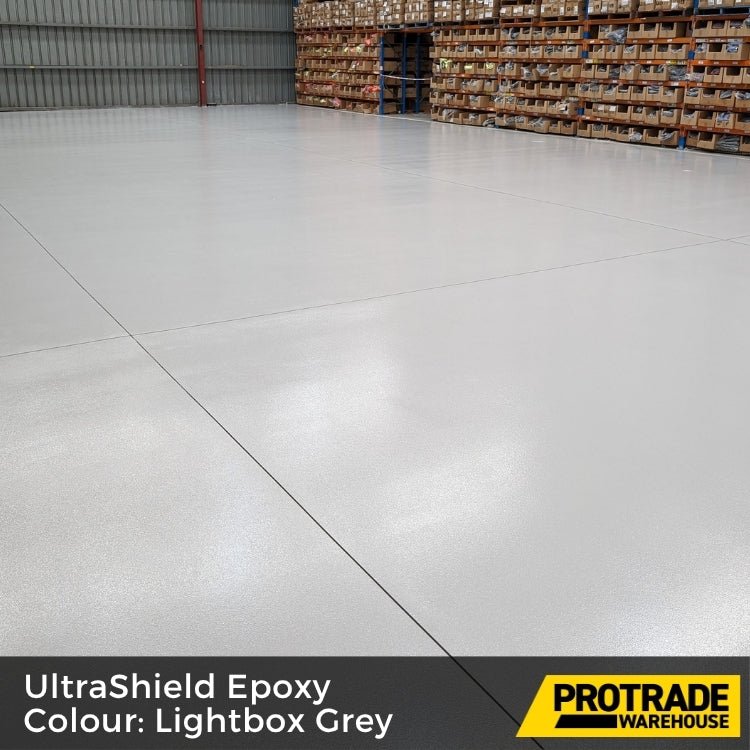

Ultrashield is a premium 100% solids, self-priming epoxy flooring resin designed to protect concrete with a smooth, durable, and chemical-resistant finish. Available in pre-tinted Lightbox Grey and Black or neutral base (tintable with Ultrakote pigment packs).

Key Features

• 100% solids epoxy – maximum durability and protection
• Extended pot life – more working time, less stress for applicators
• Low-yellowing & UV-resistant – ideal for roller doors & natural light areas (indoor use only)
• Excellent resistance to hot-tyre pickup, fuels, chemicals & abrasion
• Smooth, glossy finish – slip resistance achievable with anti-slip media
• Easy application via roller, brush, squeegee, or spray
• Wide colour range for professional results

Applications

Ideal for:

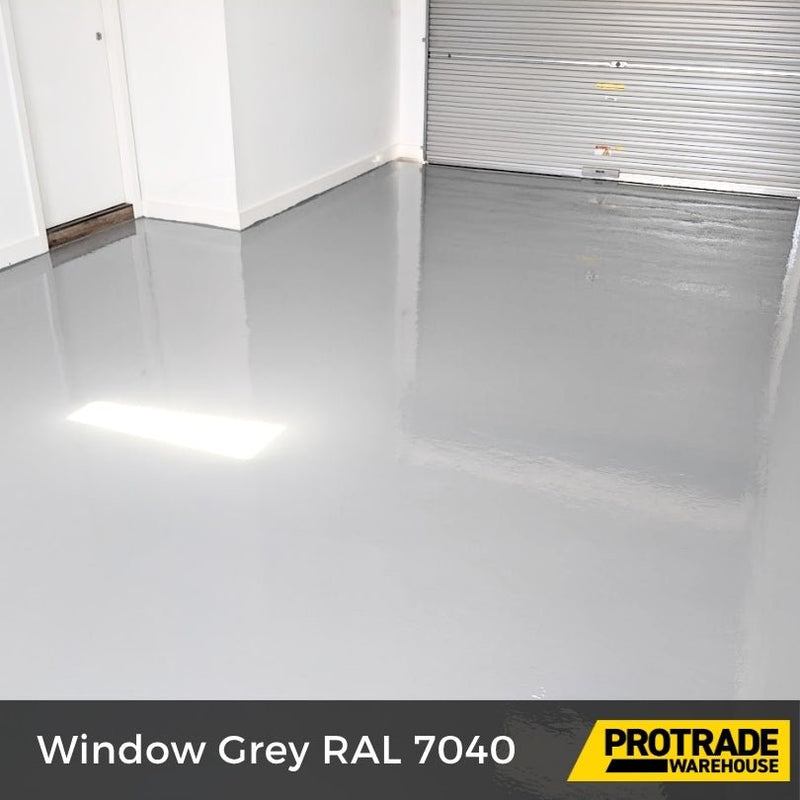

• Garage floors & flake flooring base coats

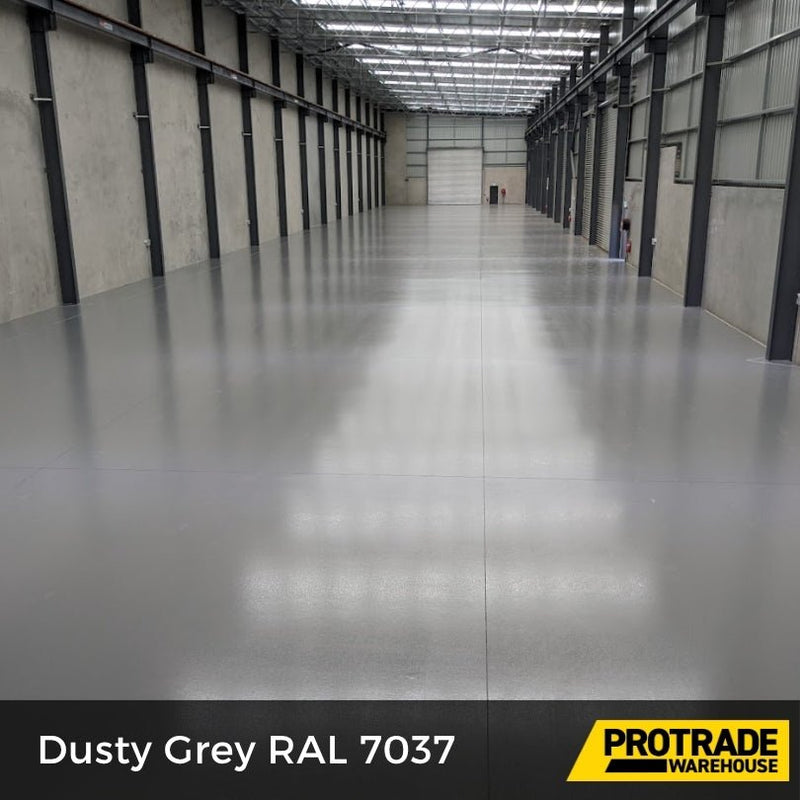

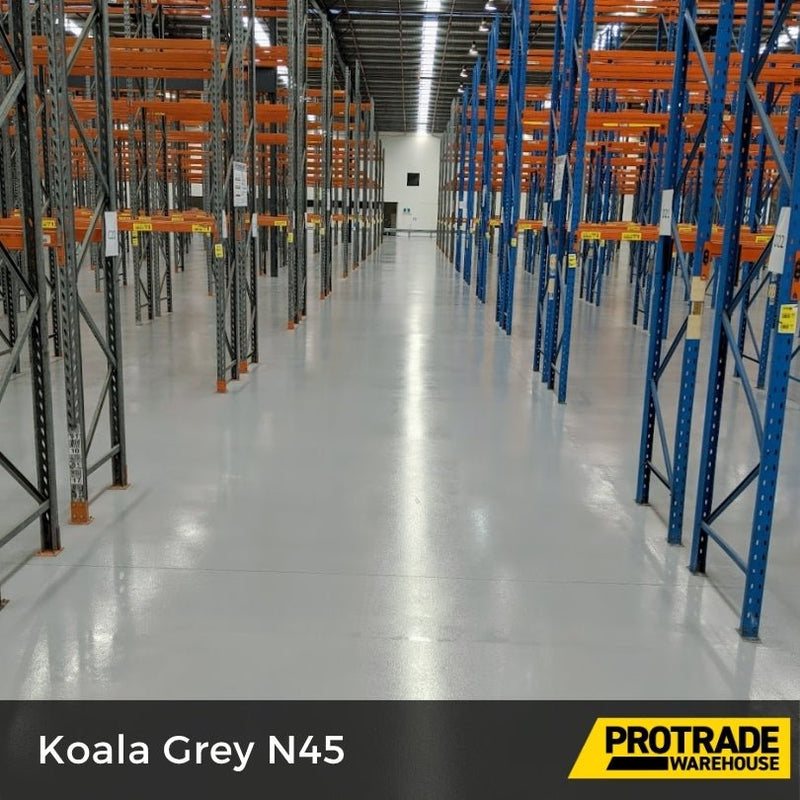

• Warehouses, workshops & storage units

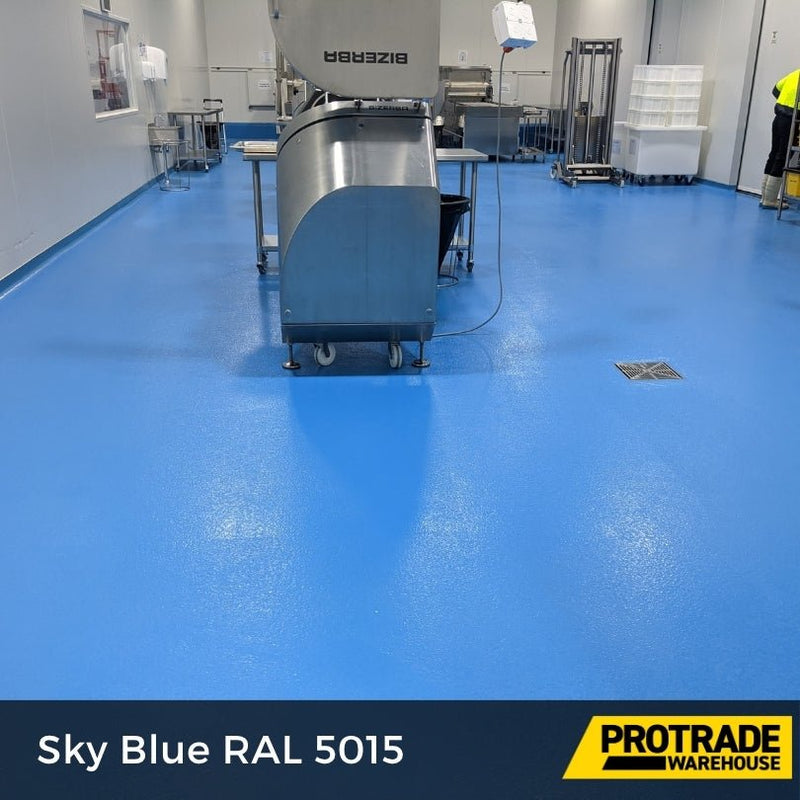

• Commercial kitchens, bars & shops
• Car parks, schools & aircraft hangars
• Freezers, cool rooms & heavy-traffic areas

Packaging & Coverage

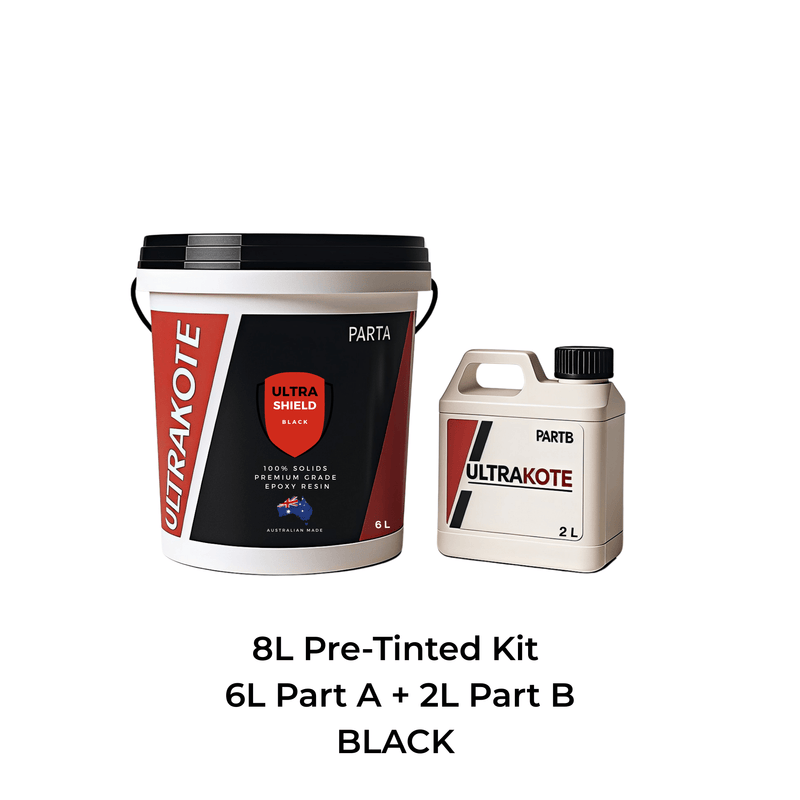

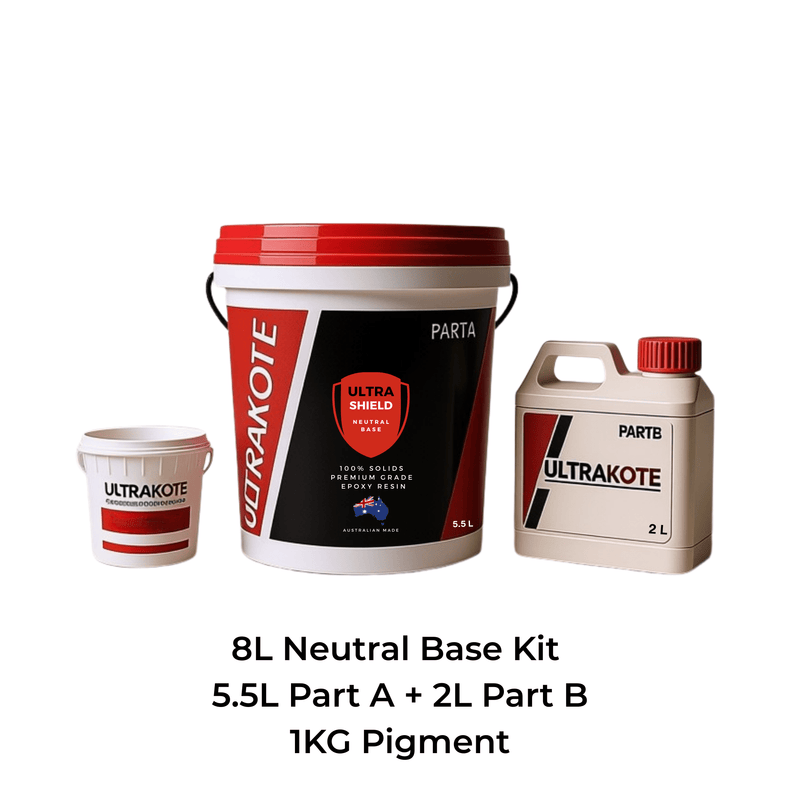

• 8L Kit: Part A (5.5–6L) + Part B (2L) + one pigment pack (for untinted base)

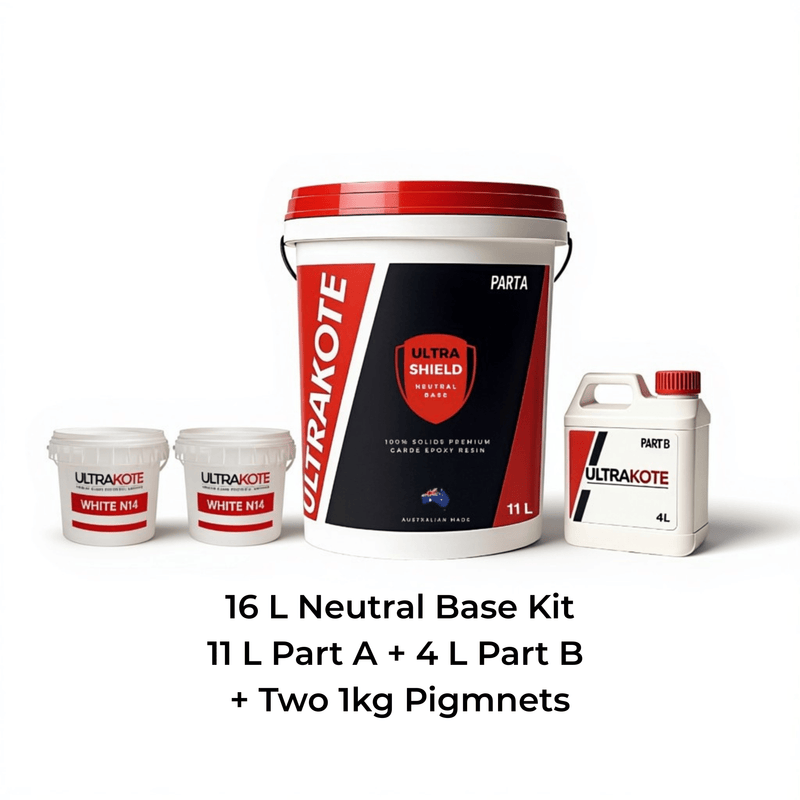

• 16L Kit: Part A (11–12L) + Part B (4L) + two pigment packs (for untinted base)

Mix Ratio: 3 parts A : 1 part B – power mix for 2 minutes

Coverage:

• Up to 40m² per 8L kit (per coat)
• Up to 80m² per 16L kit (per coat)

(Two coats recommended. Actual coverage varies by substrate porosity & preparation.)

Recommended Systems

Two-Coat Epoxy System (Good Slabs – No Moisture)

1. Repair cracks, spalling, and surface defects.
2. Diamond grind the slab.
3. Apply first coat of Ultrashield thinned 10% with Xylene or GP Thinners.
4. Once cured to walk-on stage, lightly sand/scrape debris, then vacuum.
5. Apply second coat of Ultrashield thinned 5%, adding floating anti-slip media (recommended: Ultrakote Floating Media).

• Foot Traffic: 24 hrs
• Heavy Traffic: 7 days

Three-Coat System with Moisture Barrier (Damp Slabs)

Moisture Testing:

• If >5% → Apply one or two coats of Ultrabarrier Moisture Barrier Epoxy.
• If >12% → Do not coat floor until moisture is reduced.

Steps:

1. Repair cracks and defects.
2. Diamond grind the slab.
3. Apply 2 coats of Ultrabarrier.
4. Apply first coat of Ultrashield thinned 10%.
5. Light sand/scrape, vacuum.
6. Apply second coat of Ultrashield thinned 5%, adding floating anti-slip media.

For heavy-duty slip resistance: broadcast aluminium oxide over the 2nd coat while wet, then seal with final coat.

• Foot Traffic: 24 hrs
• Heavy Traffic: 7 days

Three-Coat System for Porous Slabs (Pinholes & High Absorption)

1. Repair cracks and defects.
2. Diamond grind the slab.
3. Apply 1–2 coats of Ultra Primer (low-viscosity epoxy primer to seal pores and pinholes).
   • Double priming recommended for highly porous concrete.
4. Apply first coat of Ultrashield thinned 10%.
5. Light sand/scrape, vacuum.
6. Apply second coat of Ultrashield thinned 5%, adding floating anti-slip media.

For heavy-duty slip resistance: broadcast aluminium oxide over the 2nd coat while wet, then seal with final coat.

• Foot Traffic: 24 hrs
• Heavy Traffic: 7 days

Still have questions? Call us – our team is here to help.
For bulk orders or special project pricing, contact us directly for a quote.

Colour Accuracy Disclaimer: We have taken care to display the most accurate visuals of our products. However, we are not responsible for the colour accuracy of the device you are viewing our swatches on. These variations arise due to different computer monitors and devices (make, model and technology, as well as resolution, contrast and brightness control settings) in much the same way a scan will differ from an original image and a colour photocopy. Furthermore, coatings can exhibit variation in perceived colour depending on gloss level and application method. If you require a very specific colour match, please make your selection via actual swatches and colour boards available at our showroom.

Product Disclaimer: Ensure you read all product, technical and safety data sheets prior to application as liability falls on the applicator. All products must be applied in accordance with manufacturer’s recommended method.
