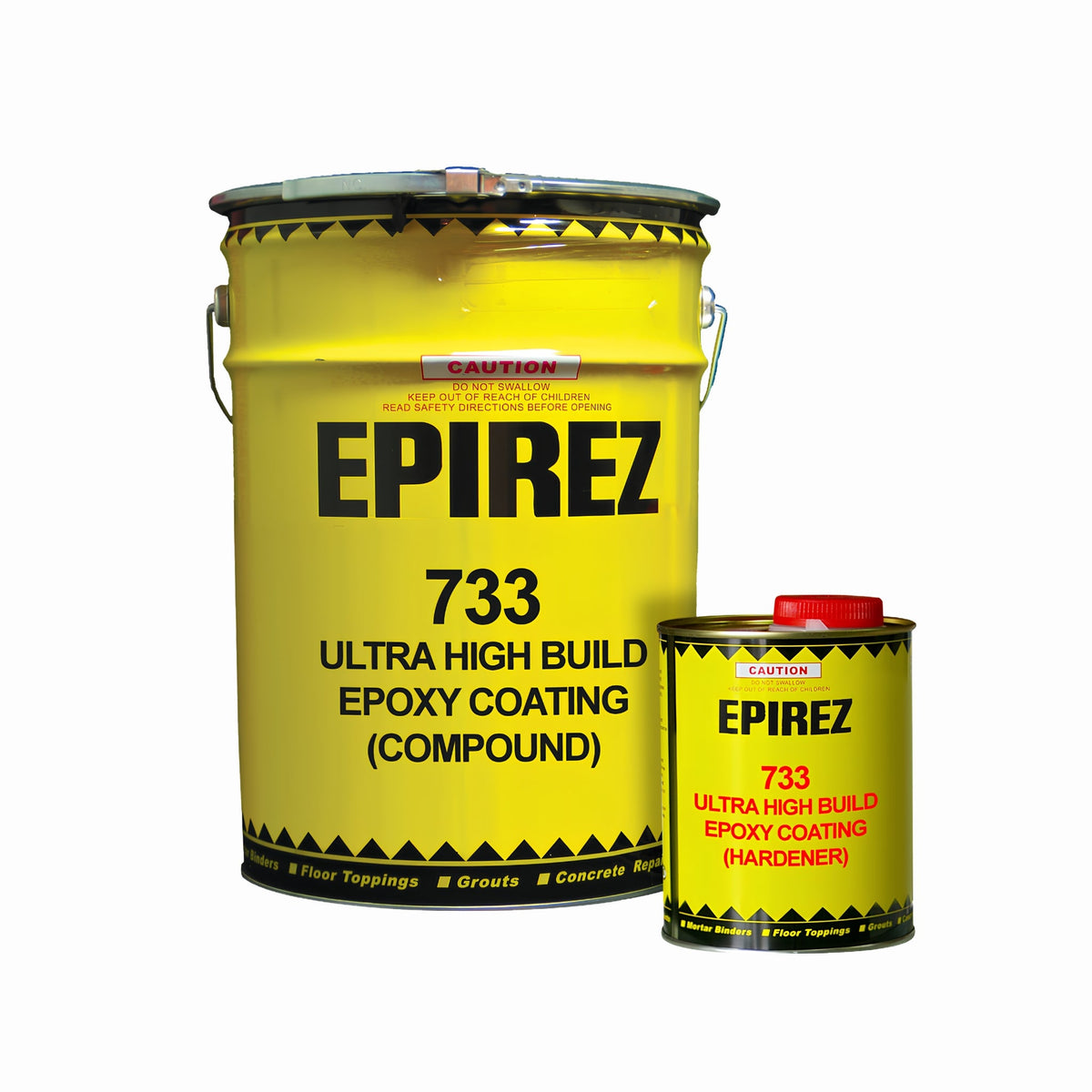

Epirez Ultra High Build Epoxy Coating 733 16L
Ultra high-build epoxy coating for demanding concrete and steel protection
- Cures underwater for splash zone piling and marine infrastructure repairs
- 16L kit covers approximately 5.3m² at 3mm thickness
EPIREZ Ultra High Build Epoxy Coating 733 is a solvent-free, high-performance epoxy coating designed to protect and repair concrete and steel exposed to flow wear, chemicals and demanding service conditions.
The coating is designed for infrastructure assets, splash zone areas and industrial environments where a high-build protective system is required. It can be applied in a single spray application at 3 mm DFT or greater, helping reduce application time and labour requirements compared with multiple thinner coating applications.
Ultra High Build Epoxy Coating 733 can cure underwater and withstand early immersion, making it suitable for maintenance work on splash zone piling. It can be applied at low tide and continue curing under immersed conditions to provide ongoing protection to wharf piling.
The coating provides excellent adhesion to wet or dry concrete, high mechanical strength, abrasion and erosion resistance, and resistance to a broad range of acids, alkalis and solvents.
Key Features and Benefits
- Ultra high-build application: Designed for 3 mm DFT or greater in one spray application.
- Underwater curing: Can cure underwater and withstand early immersion.
- Splash zone protection: Suitable for maintenance coating of piling and marine infrastructure.
- Excellent adhesion: Bonds to wet or dry concrete.
- Chemical resistance: Resists a broad range of acids, alkalis and solvents.
- High mechanical strength: Ultimate compressive strength is greater than 75 MPa.
- Abrasion and erosion resistance: Designed for demanding infrastructure and industrial environments.
- Solvent-free: Contains 100% solids and 0 g/L VOC.
- Non-shrink: Designed for protective concrete and steel coating applications.
- Potable water contact: Meets AS/NZS 4020:2018 requirements for use in contact with potable water.
Where Can EPIREZ Ultra High Build Epoxy Coating 733 Be Used?
Ultra High Build Epoxy Coating 733 is designed for demanding infrastructure, marine, wastewater and industrial applications.
- Splash zone piling
- Sewer and manhole lining
- Offshore oil and gas installations
- Transmission pipelines
- Heavy-duty applications in chemical plants
- Protective bunding
- Sewer and wastewater piping
- Water reservoir repairs
Coverage and Kit Size
| Pack Size | Estimated Coverage | Application Thickness |
|---|---|---|
| 16 L | 5.3 m² | 3 mm DFT |
The stated coverage is based on a 16 L kit applied at 3 mm thickness.
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | EPIREZ Ultra High Build Epoxy Coating 733 |
| Previous Name | EPIREZ 733 |
| Product Type | Ultra high-build epoxy coating |
| Solids Content | 100% |
| VOC Content | 0 g/L |
| Mixing Ratio | 1 Part Hardener : 3 Parts Compound |
| Pot Life @ 25°C | 30 minutes |
| Tack Free Time @ 25°C | 6 hours |
| Hardening Time @ 25°C | 24 hours |
| Full Chemical Resistance | 7 days at 25°C |
| Mixed Viscosity | 12,000–18,000 cP |
| Application Temperature | 10°C to 30°C |
| Application Thickness | 3 mm DFT or greater |
| Coverage | 5.3 m² per 16 L kit at 3 mm thickness |
| Ultimate Compressive Strength | >75 MPa |
| Flexural Strength | >10 MPa |
| Tensile Strength | >10 MPa |
| Concrete Tensile Bond Strength | 3.8 MPa (concrete failure) |
| Water Permeability | 1.2 × 10-16 m·s-1 |
| Cathodic Disbondment | Complies with requirements of AS 3750.2 / AS 4352:2005 |
| Package Size | 16 L |
| Shelf Life | 2 years |
Important: Always read the current manufacturer's Technical Data Sheet before mixing, surface preparation or application.
