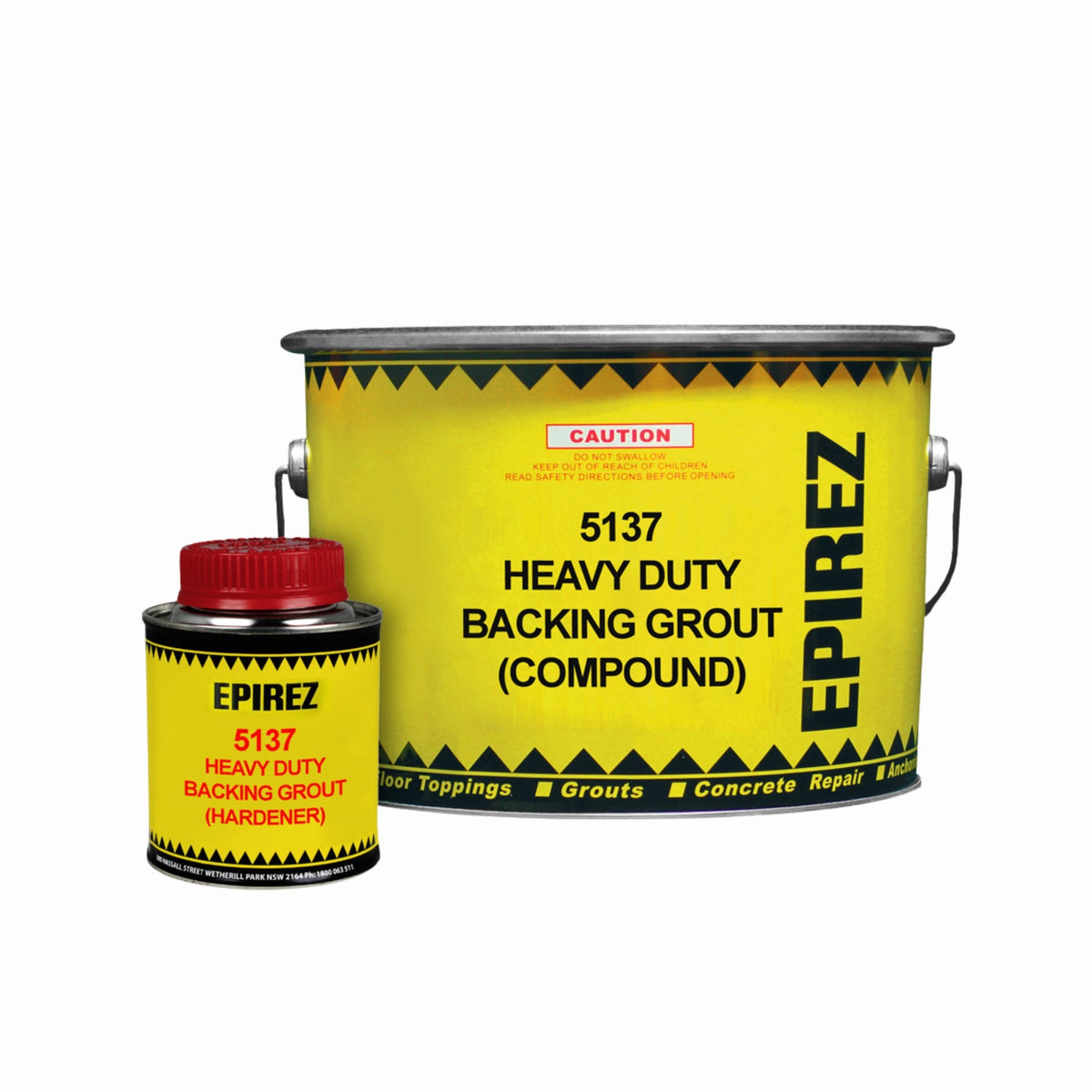

Epirez Heavy Duty Backing Grout 5137 10kg Green
Non-shrink epoxy grout for heavy-duty industrial and structural support applications
- Flows into fine voids and cavities down to 2mm
- 10kg kit provides approximately 6 litres of mixed grout
EPIREZ Heavy Duty Backing Grout 5137 is a non-shrink, heavy-duty epoxy grout designed for demanding industrial and structural applications. Its flowable consistency allows it to fill fine voids and cavities down to 2 mm, before hardening into a tough, impact-resistant backing.
Heavy Duty Backing Grout 5137 is particularly suited to backing crusher manganese steel liners, where it provides support to the components and protection for supporting structures. It is also suitable for machine bases, bearing supports, bridge footings and rail grouting.
The grout provides high compressive strength, excellent mechanical strength and good chemical resistance without requiring aggregate to be added. It can be used for pours from 2 mm to 50 mm, depending on the volume of the pour.
The product was previously named EPIREZ® 5137.
Key Features and Benefits
- Non-shrink epoxy grout: Designed for precision backing and support applications.
- Fine void filling: Flows into cavities and voids down to 2 mm.
- High compressive strength: Minimum stated compressive strength is 104 MPa.
- Impact resistant: Hardens into an extremely tough, impact-resistant backing.
- Excellent mechanical strength: Designed for demanding equipment support applications.
- No aggregate required: Easy mixing without adding aggregate.
- Good chemical resistance: Suitable for corrosive industrial environments.
- Wide pour range: Suitable for pours from 2 mm to 50 mm.
- Self-extinguishing: Meets the stated ASTM D635 flammability classification.
Where Can EPIREZ Heavy Duty Backing Grout 5137 Be Used?
Heavy Duty Backing Grout 5137 is designed for demanding mining, quarrying, industrial and structural applications.
- Backing for crushing equipment
- Manganese steel crusher liners
- High-strength bearing supports
- Machine bases in corrosive environments
- Bridge footings
- Rail grouting
The product has been used by major mining and quarrying operators throughout Australia, Asia and the Pacific region.
Coverage and Pour Thickness
| Pack Size | Mixed Volume | Pour Thickness |
|---|---|---|
| 10 kg | 6 litres | 2–50 mm |
The suitable pour thickness depends on the volume of the pour. For specific recommendations based on the project, technical advice should be obtained before application.
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | EPIREZ® Heavy Duty Backing Grout 5137 |
| Previous Name | EPIREZ® 5137 |
| Product Type | Non-shrink heavy-duty epoxy backing grout |
| Mixed Colour | Green |
| Mixing Ratio by Volume | 1 Hardener to 5 Compound |
| Mixing Ratio by Weight | 1 Hardener to 10 Compound |
| Initial Mixed Viscosity | <10 Pa.s at 25°C |
| Work Time @ 25°C | 30 minutes |
| Work Time @ 15°C | 60 minutes |
| Setting Time @ 25°C | 6 hours |
| Setting Time @ 15°C | 12 hours |
| Cure Time @ 25°C | 24 hours |
| Cure Time @ 15°C | 48 hours |
| Minimum Compressive Strength | 104 MPa |
| Brinell Hardness | 57 |
| Maximum Casting Thickness | 50 mm |
| Maximum Service Temperature | 130°C |
| Flammability | Self-extinguishing according to ASTM D635 |
| Dielectric Constant | 3.3 at 100 kHz, 25°C |
| Dielectric Strength | 180 kV/cm |
| Kit Size | 10 kg |
| Mixed Volume | 6 litres |
| Shelf Life | 2 years |
Important: Always read the current manufacturer's Technical Data Sheet before mixing, surface preparation or application.
