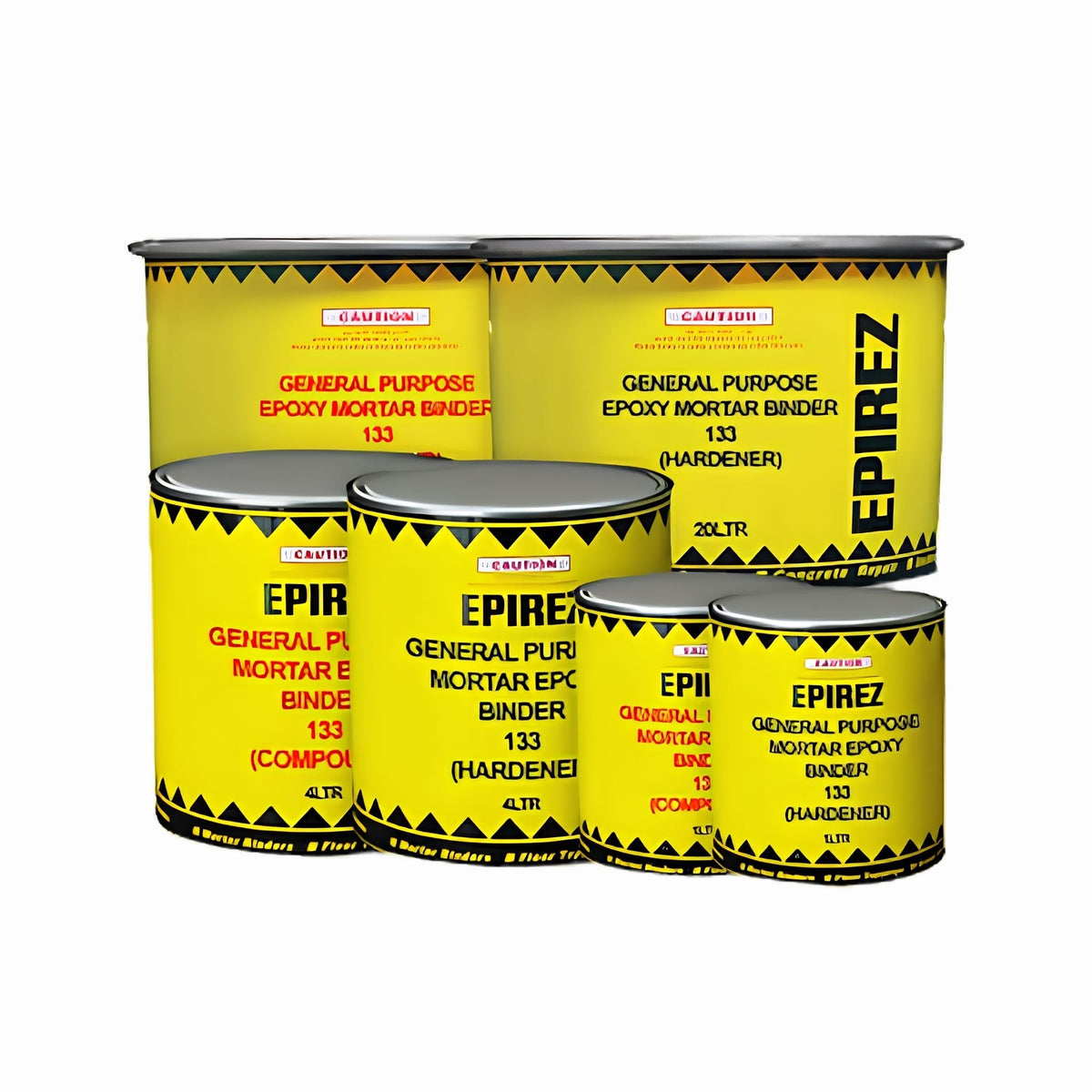

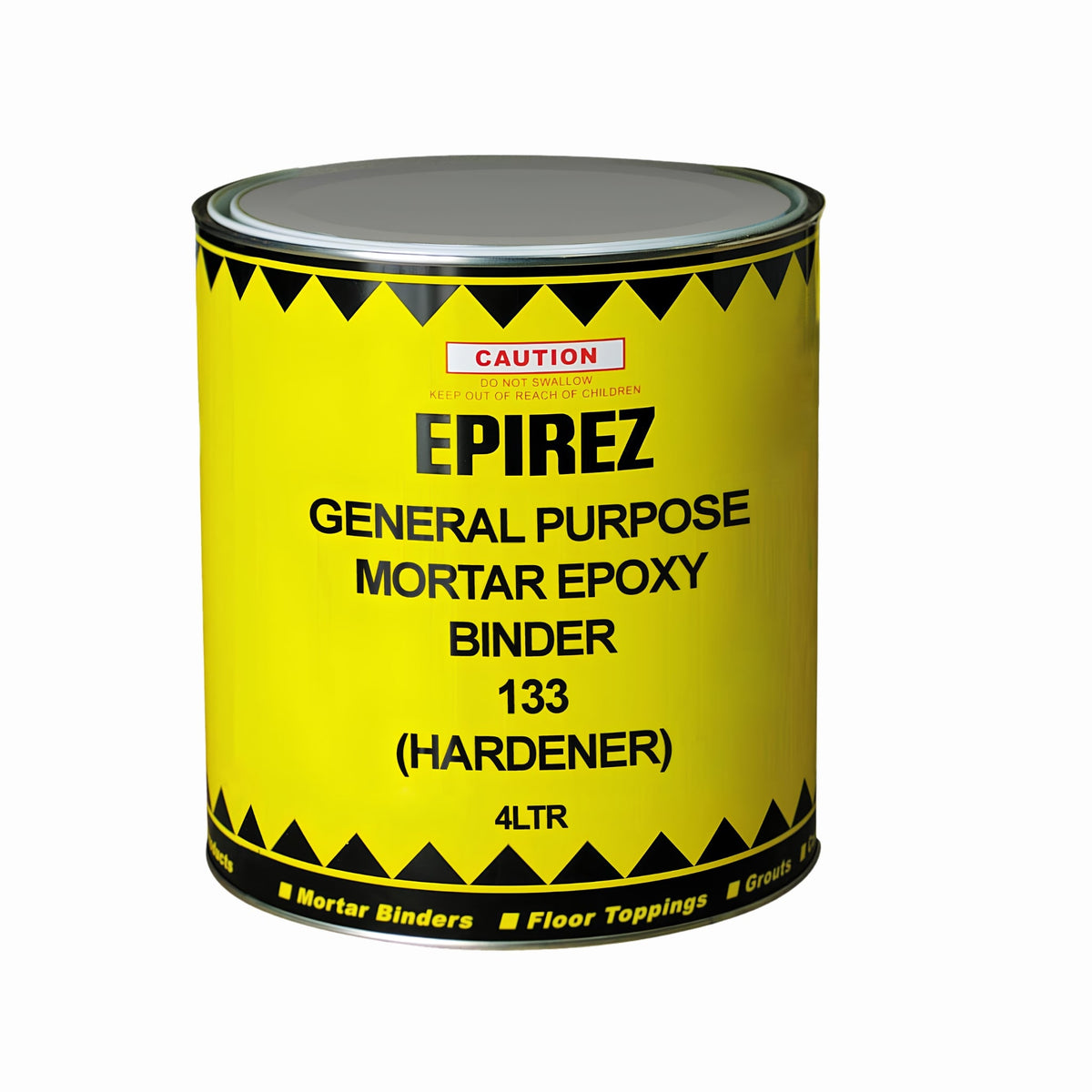

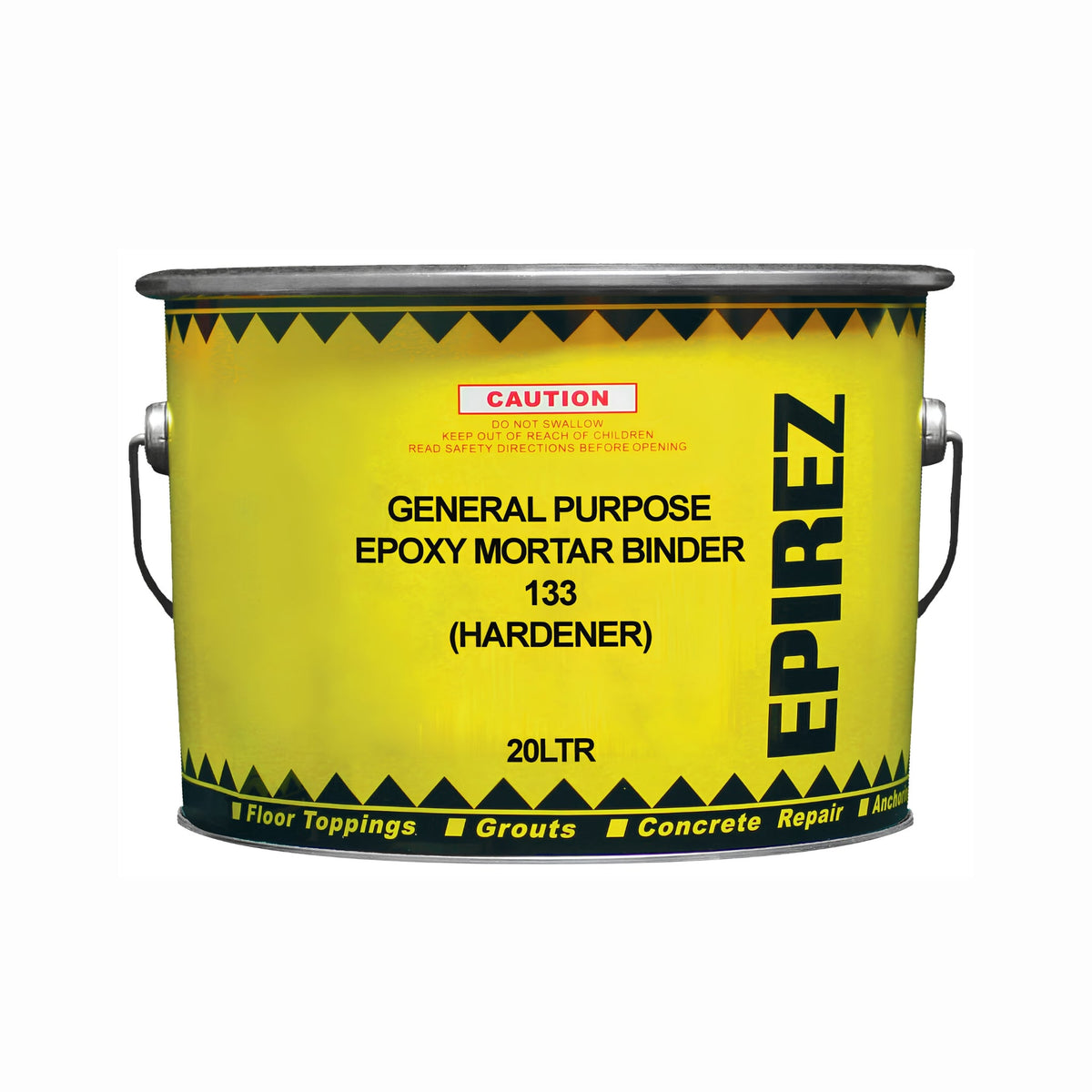

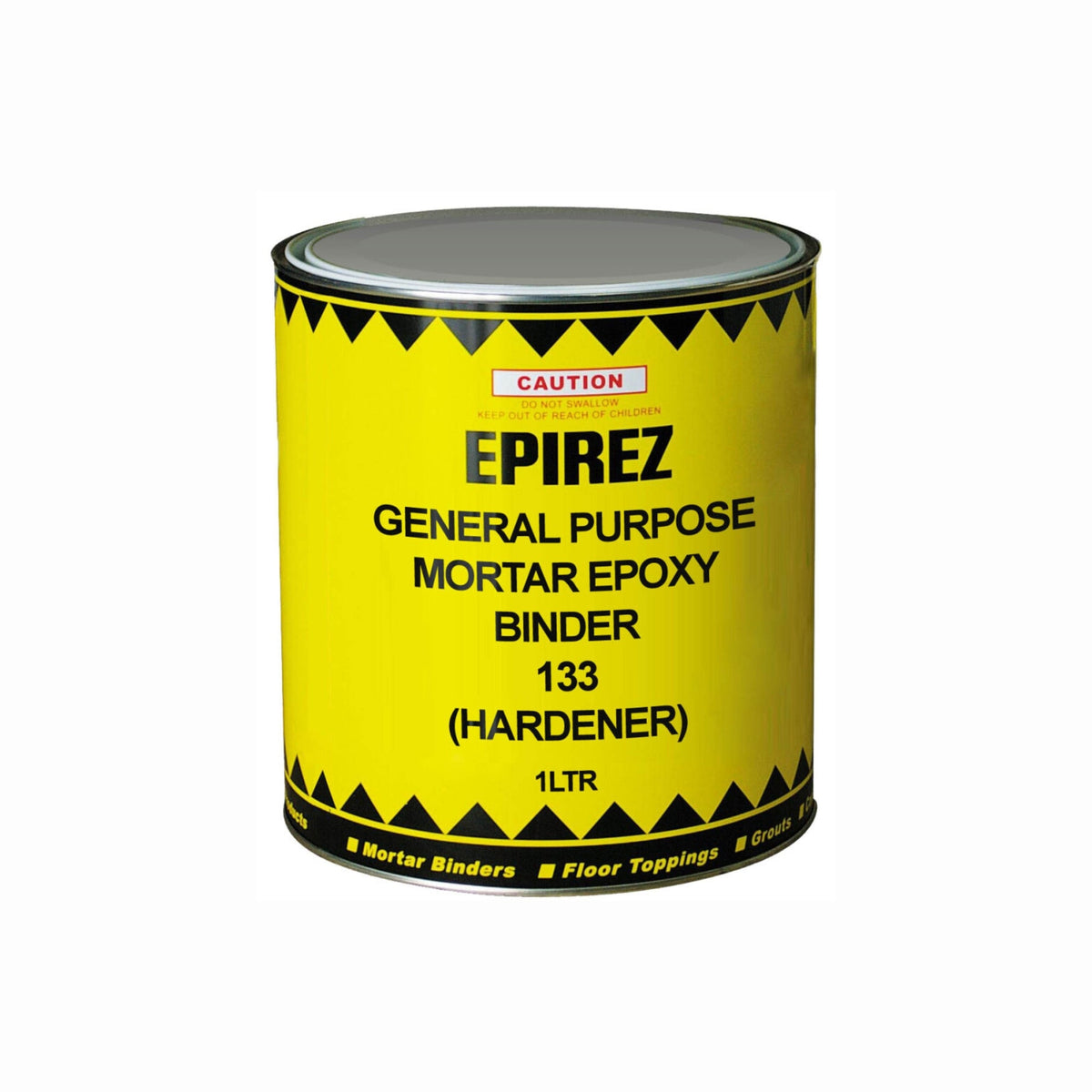

Epirez General Purpose Epoxy Mortar & Concrete Binder 133
Solventless epoxy binder for high-strength mortar and concrete repairs
- Bonds to wet or dry concrete with excellent adhesion
- Suitable for structural repairs, grouting, lining and steel-to-concrete bonding
- 4L binder with 16L QA2 aggregate covers approximately 4m² at 4mm
EPIREZ General Purpose Epoxy Mortar Binder is a solventless epoxy binder designed for multi-purpose epoxy mortar and concrete applications where high structural integrity is required. Its low mixed viscosity, wet-surface bonding capability and fast hardening help produce high-strength epoxy mortars and concretes.
When combined with EPIREZ aggregates, the binder can be used to prepare epoxy mortars and concretes for structural repairs, concrete lining, grouting and steel-to-concrete bonding.
The cured system provides excellent adhesion, high compressive and tensile strength, and resistance to the entry and passage of water and corrosive ions. It also provides high chemical resistance and a non-shrink formulation.
EPIREZ General Purpose Epoxy Mortar Binder has been independently tested and complies with AS/NZS 4020:2018 for use with potable water.
Key Features and Benefits
- Multi-purpose epoxy binder: Designed for mortar and concrete repair applications.
- Solventless formulation: Contains 100% solids and 0 g/L VOC.
- Wet-surface bonding: Provides excellent adhesion to wet or dry concrete.
- Low mixed viscosity: 12,000–18,000 cP according to the technical data.
- High mechanical strength: Ultimate compressive strength is 95 MPa.
- High tensile strength: Ultimate tensile strength is 55 MPa.
- High chemical resistance: Provides resistance in demanding repair environments.
- Non-shrink: Designed for epoxy mortar and concrete applications requiring dimensional stability.
- Aggregate extendable: Can be combined with EPIREZ® aggregates to prepare epoxy mortars and concretes.
- Low-temperature cure: Suitable for application temperatures from 10°C to 30°C.
Where Can EPIREZ General Purpose Epoxy Mortar Binder Be Used?
EPIREZ General Purpose Epoxy Mortar Binder is designed for a range of structural bonding, repair and grouting applications.
- Structural bonding of new to old concrete lining
- Structural repair of spalled concrete and masonry
- Grouting load-bearing bolts and supports into concrete
- Splash-zone repairs to concrete and timber structures
- Bonding steel to concrete
Coverage and Estimating Data
| Binder / System | Estimated Coverage | Thickness |
|---|---|---|
| 1 L EPIREZ® General Purpose Epoxy Mortar Binder | 1 m² | 1 mm DFT |
| 4 L Binder + 16 L EPIREZ® Patching & Flooring Mortar Aggregate (QA2) | 4 m² | 4 mm thick |
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | EPIREZ® General Purpose Epoxy Mortar Binder |
| Previous Name | EPIREZ® 133 |
| Product Type | Solventless epoxy mortar and concrete binder |
| Solids Content | 100% |
| VOC Content | 0 g/L |
| Mixing Ratio | 1 Hardener : 3 Compound |
| Pot Life @ 25°C | 30 minutes |
| Tack Free Time @ 25°C | 6 hours |
| Hardening Time @ 25°C | 24 hours |
| Full Chemical Resistance | 7 days at 25°C |
| Mixed Viscosity | 12,000–18,000 cP |
| Application Temperature | 10°C to 30°C |
| Ultimate Compressive Strength | 95 MPa |
| Compressive Modulus | 3.4 GPa |
| Ultimate Tensile Strength | 55 MPa |
| Water Permeability | 2.0 × 10-17 m·s-1 |
| Temperature Resistance — Wet | 65°C |
| Temperature Resistance — Dry | 120°C |
| Potable Water | Complies with AS/NZS 4020:2018 for use with potable water |
| Concrete Coverage | 1 m² per litre at 1 mm DFT |
| Binder + Aggregate Coverage | 4 m² using 4 L Binder + 16 L QA2 Aggregate at 4 mm thick |
Important: Always read the current manufacturer's Technical Data Sheet before mixing, surface preparation or application.
