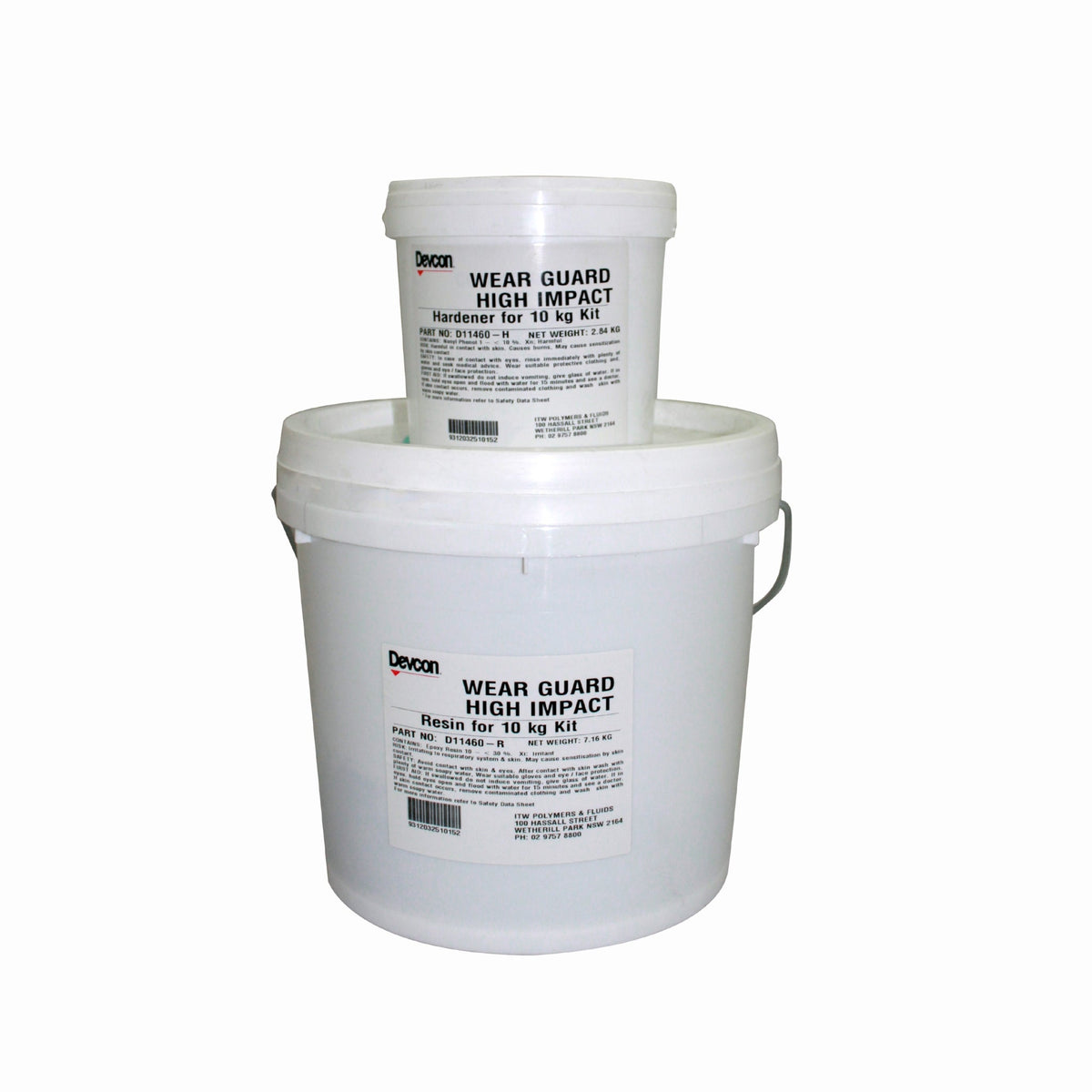

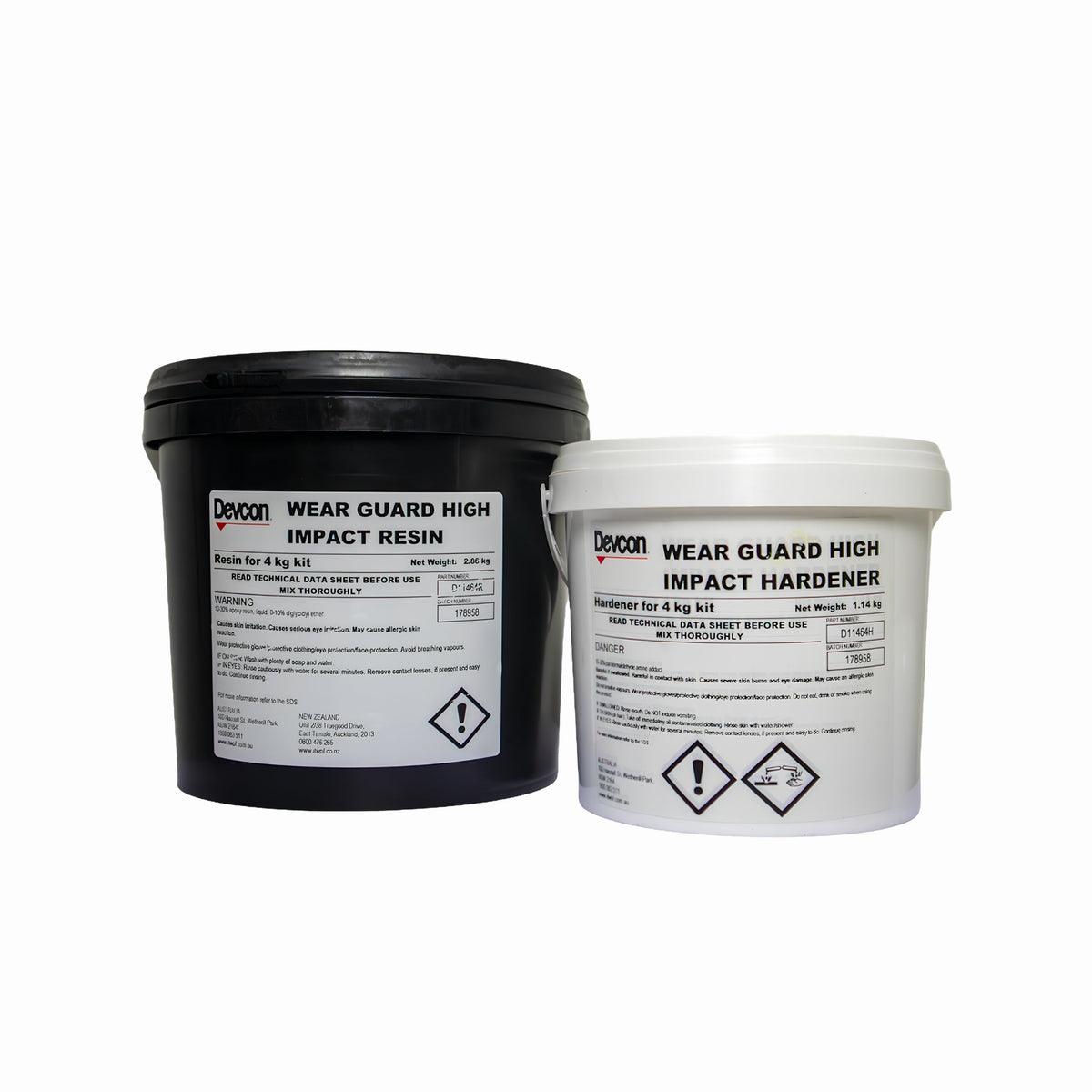

Devcon Wear Guard High Impact Resistant Epoxy Coating Dark Grey
High-impact ceramic-filled epoxy for severe abrasion and equipment wear
- Micro-alumina ceramic beads provide high impact and compression resistance
- Non-sag putty suitable for vertical repairs up to 19mm thick
Wear Guard High Impact is a high-density, micro-alumina ceramic bead-filled epoxy system with urethane acrylate, designed to protect equipment exposed to severe impact and abrasion.
Its non-sagging putty consistency makes it suitable for repairing and protecting equipment where high impact, compression and wear resistance are required. It is designed for applications involving pumps, scrubbers, screens, chutes, material handling equipment and screw conveyors.
Wear Guard High Impact can be trowelled onto vertical surfaces without sagging and can be applied at a minimum thickness of 6.4 mm. After curing, the repaired surface can be machined, drilled or painted.
Key Features and Benefits
- High impact resistance: Designed for equipment exposed to tremendous impact and flex.
- Extreme wear resistance: Designed for demanding abrasion applications.
- Ceramic-filled epoxy: Contains high-density micro-alumina ceramic beads.
- Non-sag consistency: Creamy putty stays in position during vertical application.
- High compression strength: Designed for demanding equipment protection.
- High impact strength: Formulated for severe impact environments.
- Maximum Vertical Application Thickness: 3/4" (19.05 mm) without sagging
- Machinable after cure: Can be machined, drilled or painted after full cure.
Where Can Wear Guard High Impact Be Used?
Wear Guard High Impact is designed for high-impact and abrasion applications involving:
- Pumps
- Scrubbers
- Screens
- Chutes
- Material handling equipment
- Screw conveyors
Coverage
| Application Thickness | Coverage |
|---|---|
| 6.35 mm (1/4") | Approximately 711 cm²/kg |
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | Wear Guard High Impact |
| Product Type | High-density micro-alumina ceramic bead-filled epoxy system with urethane acrylate |
| Colour | Dark Grey |
| Mix Ratio by Volume | 2.5:1 |
| Mix Ratio by Weight | 2.5:1 |
| Mixed Viscosity | Non-sag putty |
| Pot Life @ 75°F | 30 minutes |
| Recoat Time | 4–6 hours |
| Functional Cure | 6–8 hours |
| Full Cure | 16 hours |
| Specific Gravity | 2.23 g/cm³ |
| Service Temperature | Up to 149°C |
| Ideal Application Temperature | 13°C to 32°C |
| Minimum Application Thickness | 6.4 mm |
| Maximum Vertical Application Thickness | 19 mm without sagging |
| Coverage | Approximately 711 cm²/kg at 6.35 mm thickness |
Important: Always read the current product Technical Data Sheet and Safety Data Sheet before surface preparation, mixing or application.
Colour Accuracy Disclaimer: We have taken care to display the most accurate visuals of our products. However, we are not responsible for the colour accuracy of the device you are viewing our swatches on. These variations arise due to different computer monitors and devices (make, model and technology, as well as resolution, contrast and brightness control settings) in much the same way a scan will differ from an original image and a colour photocopy. Furthermore, coatings can exhibit variation in perceived colour depending on gloss level and application method. If you require a very specific colour match, please make your selection via actual swatches and colour boards available at our showroom.
Product Disclaimer: Ensure you read all product, technical and safety data sheets prior to application as liability falls on the applicator. All products must be applied in accordance with manufacturer’s recommended method.
