Sikaflex 11 FC - One Component Elastic Sealant & Adhesive
Advanced Polyurethane for Sealing and Bonding
Sikaflex-11 FC is a versatile, one-component, gun-grade sealant and adhesive known for its permanent elasticity. Based on a special moisture-cured polyurethane with an accelerated curing time, it meets ASTM C920 Type S, Grade NS, Class 12.5 for both internal and external applications.
Key Features:
- Excellent adhesion to cement-based materials, brick, ceramics, glass, metals, wood, epoxy, polyester and acrylic resin.
- Fast cure rate.
- Good weathering and water resistance.
- Non-corrosive.
- Can be over painted with water, oil, and rubber-based paints (preliminary tests recommended).
- High durability and ageing resistance.
- High pick resistance.
Uses as an Elastic Adhesive For:
- Most common construction materials.
- Floor moldings and skirting boards.
- Acoustic ceiling tiles.
- Metal.
- Wood.
Uses as an Elastic Joint Sealant For:
- Concrete.
- Seam sealing.
- Metal.
- Wood.
- Aluminum fabrication.
- Bolted lap joints.
- Skirting boards.
- Base boards.
Product Information:
-

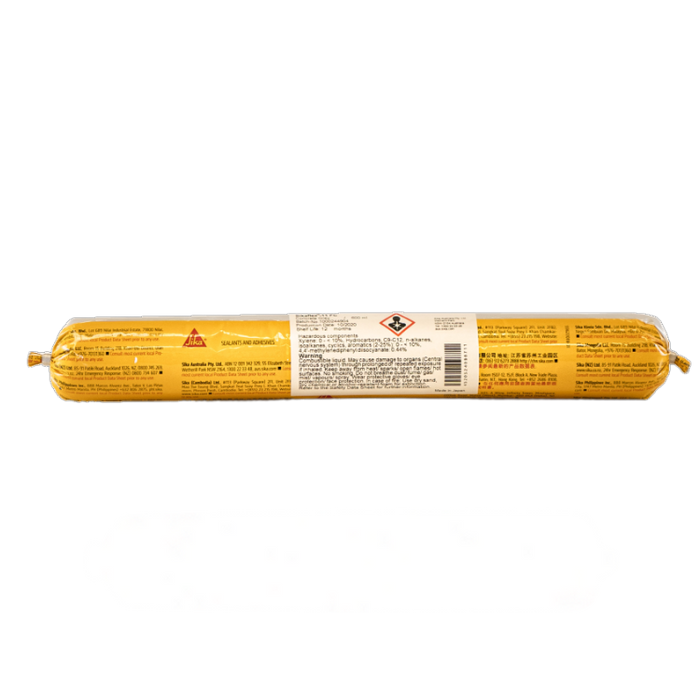

Packaging: 310 ml cartridge (12 per box), 600 ml foil pack (20 per box)
-
Shelf life: 12 months from production date in original sealed packaging, stored between +5 °C and +25 °C in dry conditions protected from direct sunlight.
-
Colour: White, Grey, Black & Japan Beige
Technical Information:
-
Shore A hardness (23 °C and 50 % R.H.): 40–45 (ASTM D-2240)
-
Tensile strength (23 °C and 50 % R.H.): ~1.55 N/mm² (ASTM D-412)
-
Tensile strain at break (23 °C and 50 % R.H.): 600 % (ASTM D-412)
-
Movement capability: ± 12.5 % (ASTM C-920)
-
Lap shear strength (23 °C and 50 % R.H., glass): 1.13 N/mm² (ASTM D-1002 modified)
-
Elastic recovery (23 °C and 50 % R.H.): >90 % (ASTM C-719)
-
Service temperature: -20 °C to +70 °C
-
Chemical resistance: Good resistance to water, weak acids, weak alkalis, sewerage, mineral oils, vegetable oils, fats, fuels. (Not resistant to organic solvents, paint thinner, strong acids, strong alkalis). Consult Technical Service for specific data.
-
Resistance to weathering (23 °C and 50 % R.H.): Excellent (ASTM D-412, ASTM C-920)
Application Information:
Consumption (Joint length per 600 ml foil pack):
- 10 mm width x 10 mm depth: 6 m
- 15 mm width x 10 mm depth: 4 m
- 20 mm width x 10 mm depth: 3 m
- 25 mm width x 12 mm depth: 2 m
- 30 mm width x 15 mm depth: 1.3 m
Backing material: Use closed cell polyethylene foam backing rods.
Curing rate: Tack-free Time: 1 to 2 hours (depending on climate), Final Cure: 3 to 5 days.
Application Instructions:
Substrate Preparation: All surfaces must be structurally sound, clean, dry and free from grease, oil, wax, dust and surface contaminants. For optimum adhesion on non-porous and porous substrates in critical applications, priming may be required. Refer to the datasheet for detailed priming instructions for various materials.
Application Method / Tools: Masking tape is recommended for neat joint lines. Insert a suitable backing rod to the required depth. Prime surfaces as recommended. Prepare the cartridge/foil pack and nozzle. Extrude Sikaflex-11 FC into the joint ensuring full contact with the sides and avoiding air entrapment. Tool sealant firmly against joint sides immediately after application using Sika Tooling Agent N for a smooth finish. Do not use solvent-containing tooling products.
Cleaning of Equipment: Clean tools immediately after use with Sika Remover-208 and / or Sika Colma Cleaner. Cured material can only be removed mechanically. For skin cleaning, use Sika Hand Wipes.
Important Considerations:
- Allow 5 day cure at standard conditions when using Sikaflex-11 FC in total water immersion applications.
- Preliminary tests are recommended when overpainting. Non-flexible paints may impair elasticity.
- Avoid exposure to high levels of chlorine (max 5ppm).
- Maximum sealant depth: 12 mm, minimum depth: 6 mm (as joint sealant).
- Maximum expansion/contraction should not exceed 12.5% of average joint width.
- Do not apply when moisture-vapor-transmission condition exists from the substrate. Avoid air entrapment during application.
- Permit sufficient exposure to air for moisture curing.
- White may discolour/yellow slightly when exposed to UV rays.
- Proper application, design, and surface preparation are crucial for ultimate performance.
- Not for use in expansion joints, on bituminous substrates, natural rubber, EPDM, or materials that may leach oils, plasticisers, or solvents.
- Do not use to seal joints in and around swimming pools.
- Do not expose uncured Sikaflex-11 FC to alcohol-containing products and solvent cleaners.
