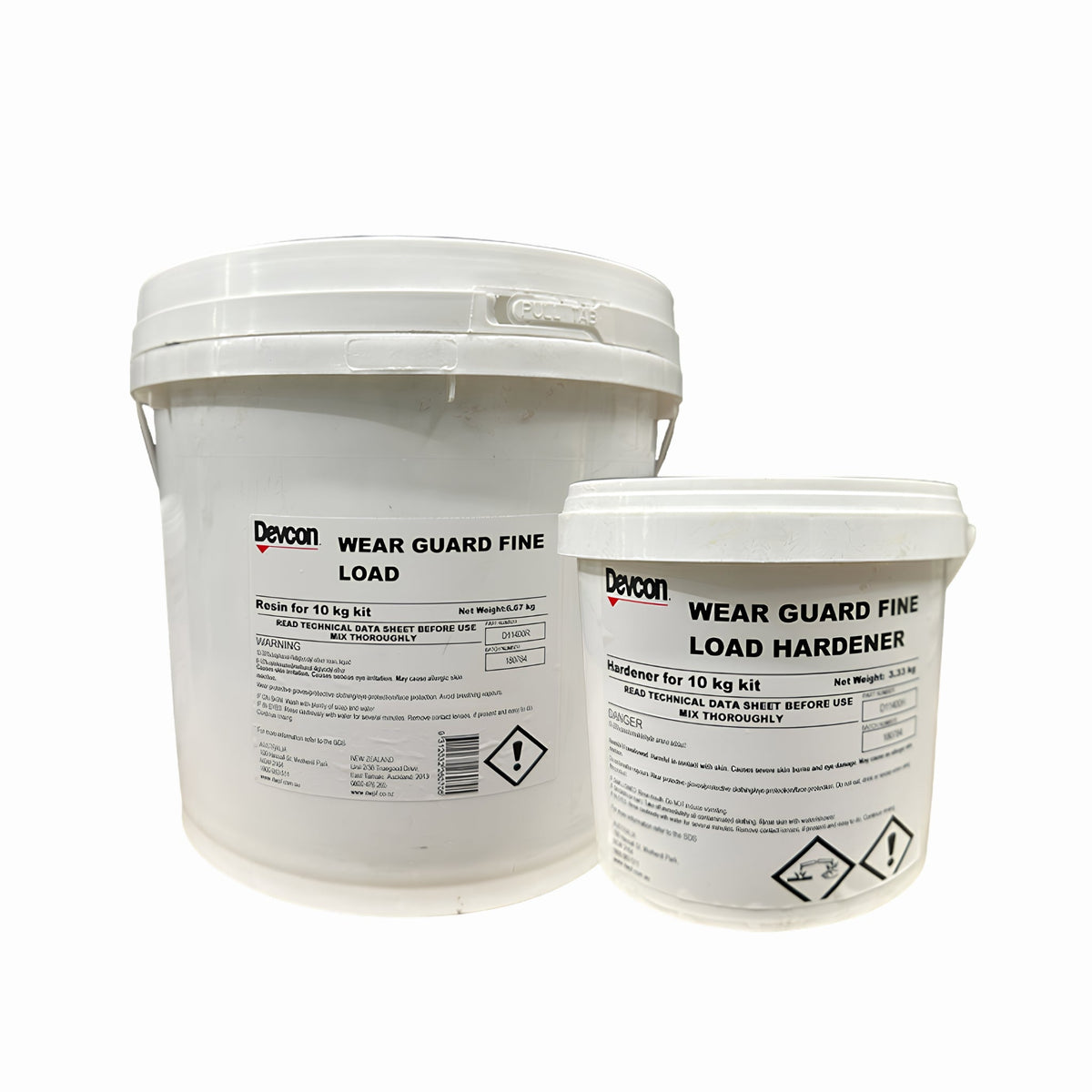

Devcon Wear Guard Fine Load | Abrasion Resistant Epoxy for Fine Wear
Ceramic-filled epoxy for protecting equipment handling fine particulate under 3.2mm
- igh-density micro-alumina ceramic beads provide excellent wear resistance
- Non-sag putty can be trowelled onto vertical surfaces smoothly
Wear Guard Fine Load is a high-density, micro-alumina ceramic bead-filled epoxy system designed to protect equipment handling fine particulate smaller than 3.2 mm.
It is designed for industrial wear applications involving equipment such as slurry pumps, scrubbers, screens and screw conveyors. The non-sag putty can be applied by trowel and finished to a smooth surface.
Wear Guard Fine Load provides outstanding resistance to a wide range of chemicals and can withstand service temperatures up to 149°C.
Key Features and Benefits
- Fine particulate protection: Designed for equipment handling particles smaller than 3.2 mm.
- Ceramic-filled epoxy: Contains high-density micro-alumina ceramic beads.
- Non-sag consistency: Can be applied to vertical surfaces without sagging.
- Smooth trowel finish: Can be trowelled to a smooth surface.
- Chemical resistance: Provides outstanding resistance to a wide range of chemicals.
- High temperature resistance: Suitable for service temperatures up to 149°C.
- Machinable after cure: Can be machined, drilled or painted after functional cure.
Where Can Wear Guard Fine Load Be Used?
Wear Guard Fine Load is designed for industrial equipment exposed to fine particulate wear, including:
- Slurry pumps
- Scrubbers
- Screens
- Screw conveyors
Coverage
| Application Thickness | Coverage |
|---|---|
| 6.35 mm (1/4") | Approximately 711 cm²/kg |
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | Wear Guard Fine Load |
| Product Type | High-density micro-alumina ceramic bead-filled epoxy system |
| Colour | Grey |
| Mix Ratio by Volume | 2:1 |
| Mix Ratio by Weight | 2:1 |
| Mixed Viscosity | Non-sag putty |
| Pot Life @ 24°C | 30 minutes |
| Recoat Time | 4–6 hours |
| Functional Cure | 16 hours |
| Full Cure | 6–8 hours |
| Service Temperature | Up to 149°C |
| Ideal Application Temperature | 13°C to 32°C |
| Minimum Application Thickness | 6.35 mm |
| Maximum Vertical Application Thickness | 19 mm without sagging |
| Coverage | Approximately 711 cm²/kg at 6.35 mm thickness |
Important: Always read the current product Technical Data Sheet and Safety Data Sheet before surface preparation, mixing or application.
Colour Accuracy Disclaimer: We have taken care to display the most accurate visuals of our products. However, we are not responsible for the colour accuracy of the device you are viewing our swatches on. These variations arise due to different computer monitors and devices (make, model and technology, as well as resolution, contrast and brightness control settings) in much the same way a scan will differ from an original image and a colour photocopy. Furthermore, coatings can exhibit variation in perceived colour depending on gloss level and application method. If you require a very specific colour match, please make your selection via actual swatches and colour boards available at our showroom.
Product Disclaimer: Ensure you read all product, technical and safety data sheets prior to application as liability falls on the applicator. All products must be applied in accordance with manufacturer’s recommended method.
