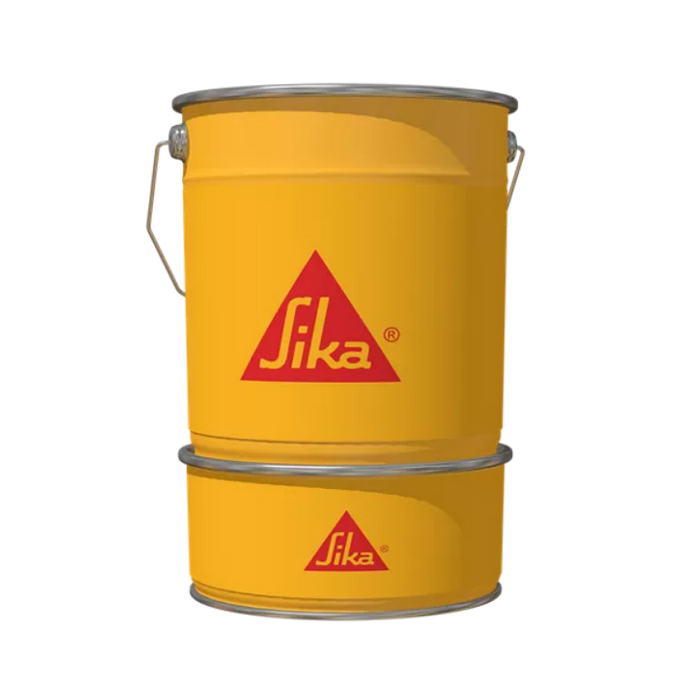

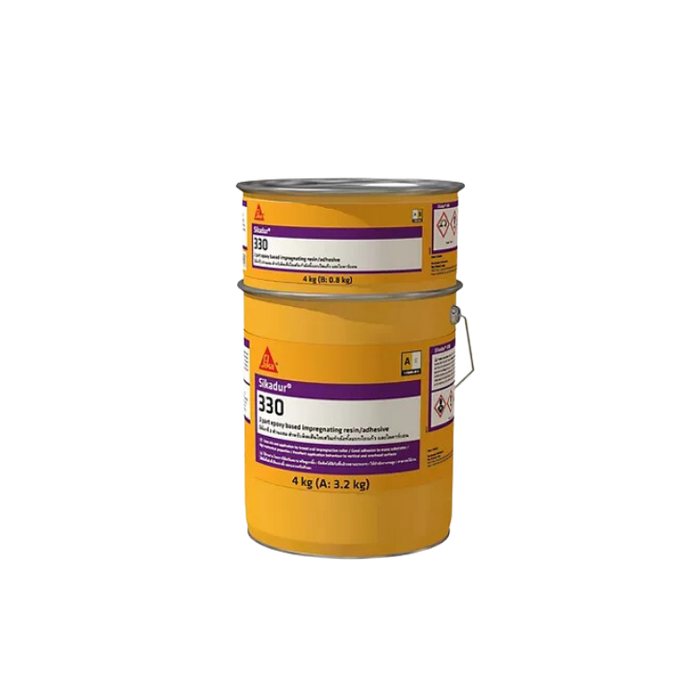

Sikadur-330 is a 2-component, thixotropic epoxy resin ideal for impregnating SikaWrap CFRP systems and bonding Sika CarboDur plates. ProTrade Warehouse offers this high-performance Sika product for experienced professionals at competitive trade prices.
Uses
- Impregnation resin for SikaWrap fabric reinforcement (dry application).
- Primer resin for the wet application system.
- Structural adhesive for bonding Sika CarboDur plates into slits.
Characteristics / Advantages
- Easy mix and application by trowel and impregnation roller.
- Manufactured for manual saturation methods.
- Excellent application behaviour to vertical and overhead surfaces.
- Good adhesion to many substrates.
- High mechanical properties.
- No separate primer required.
Product Information
Composition: Epoxy resin
Packaging: 5 kg (A+B) pre-batched unit
Shelf life: 24 months from date of production
Storage conditions: +5 °C to +30 °C in dry, unopened packaging, protect from direct sunlight.
Colour: Component A: white paste, Component B: grey paste, Mixed: light grey paste
Density (Mixed at +23 °C): 1.30 ± 0.1 kg/l
Viscosity (at various temperatures): Refer to datasheet for details.
System Information
System structure: Substrate primer - Sikadur-330, Impregnating/laminating resin - Sikadur-330, Structural strengthening fabric - SikaWrap (type to suit).
Application Information
Mixing ratio (A:B by weight): 4 : 1
Consumption: Guide: 0.7 - 1.5 kg/m² (refer to SikaWrap application method)
Ambient air temperature: +10 °C min. / +35 °C max.
Dew point: Substrate temperature must be at least 3 °C above dew point.
Substrate temperature: +10 °C min. / +35 °C max.
Substrate moisture content: < 4 % pbw
Pot Life (5 kg mix): ~90 minutes at +10 °C, ~60 minutes at +23 °C, ~30 minutes at +35 °C (EN ISO 9514)
Open Time: Approximately equivalent to pot life.
Important Considerations
- Protect from rain for at least 24 hours after application.
- Ensure fabric placement and lamination occurs within the open time.
- Tacky residue (blush) may form at low temperatures/high humidity; remove with warm, soapy water before overcoating.
- Pre-condition material for 24 hours in controlled temperature for optimal mixing and application.
- Consult a structural engineer for overcoating, layer numbers, and creep calculations.
- Long-term structural design load should account for creep (generally < 20-25% of failure load).
Application Instructions
SUBSTRATE QUALITY
Substrate must be sound with a minimum pull-off strength of 1.0 N/mm² or as per design specification (refer to SikaWrap manual dry application method).
MIXING
Pre-batched units: Mix components A+B for at least 3 minutes with a slow speed electric drill (max. 300 rpm) until smooth and uniform grey. Avoid aeration. Pour into a clean container and stir again for approx. 1 minute. Mix only what can be used within the pot life.
Bulk packing: Stir each component thoroughly. Add in correct proportions into a mixing pail and mix as above.
APPLICATION METHOD / TOOLS
Refer to the "Method Statement for SikaWrap® manual dry application" Ref 850 41 02.
CLEANING OF EQUIPMENT
Clean all equipment immediately with Sika Colma Cleaner. Cured material can only be removed mechanically.
Order Sikadur-330 Epoxy Impregnation Resin from ProTrade Warehouse. . Australia-wide delivery available.
