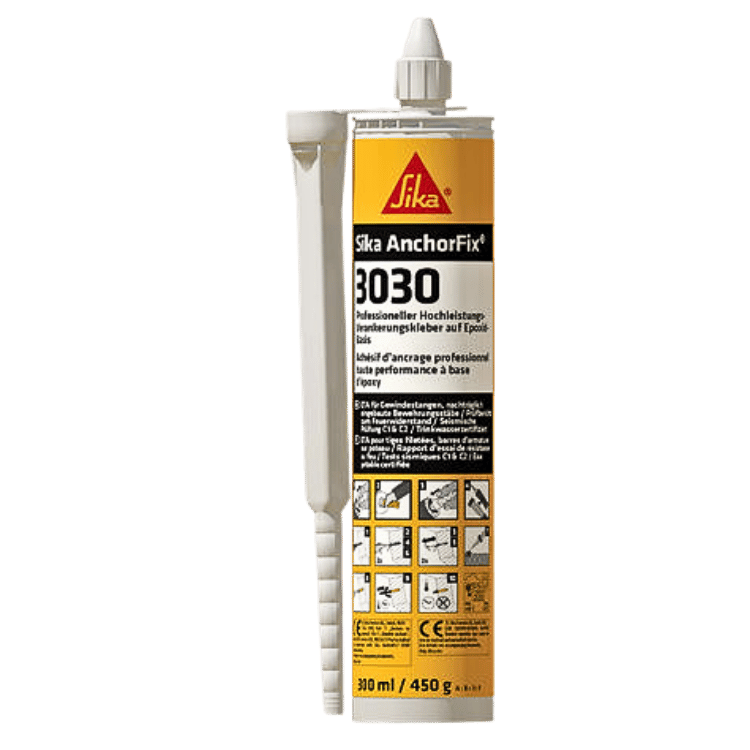

Sika AnchorFix 3030 Epoxy High Performance Anchoring Adhesive – 585ml – Carton of 12
Sika AnchorFix 3030 is a two-part epoxy resin adhesive, designed for anchoring threaded rods and reinforcing bars in both cracked and uncracked concrete, including damp conditions. Supplied in 585ml dual cartridges, 12 cartridges per box, it ensures consistent performance for structural and metalwork applications.
Usage
Anchoring adhesive for fixing non-expanding anchors in:
Structural work
- Rebar / steel reinforcement in new and refurbishment projects
- Threaded rods and bolts
- Special fastening / fixing systems
Metalwork and carpentry
- Handrails, balustrades, and supports
- Railings, window and door frames
Substrates
- Concrete (cracked and uncracked)
- Hollow and solid masonry
- Wood
- Natural and reconstituted stone
- Solid rock
Advantages
- Long open time
- Usable in damp concrete
- High load capacity
- ETA approved for cracked concrete and post-installed rebar
- Seismic tested (C1 & C2)
- Fire resistant
- Styrene-free
- Good adhesion and shrinkage-free hardening
- Low emissions and minimal wastage
- Safe for contact with drinking water
Packaging
- 585ml dual cartridge
- 12 cartridges per box
- Pallet: 44 boxes (528 cartridges)
Colour
- Part A: Off-white
- Part B: Grey
- Mixed: Light Grey
Technical Information
| Property |
Value |
| Composition |
Epoxy resin |
| Shelf life |
24 months from production date |
| Density (A+B mixed) |
~1.5 kg/L |
| Compressive strength |
~95 N/mm² (7 days, +20°C) |
| Tensile strength in flexure |
~45 N/mm² (7 days, +20°C) |
| Tensile strength |
~23 N/mm² (7 days, +20°C) |
| Service temperature |
Long term: -40°C to +50°C; Short term: up to +70°C |
Application Information
- Mixing ratio: Part A : Part B = 3 : 1 by volume
- Max layer thickness: ~8mm
- Sag flow: Non-sag, including overhead
- Material temperature: +10°C to +40°C
- Ambient air temperature: +5°C to +40°C
- Substrate temperature: +5°C to +40°C
- Dew point: Substrate must be ≥3°C above dew point
Curing Time
| Temperature |
Open Time (Tgel) |
Curing Time (Tcur) |
| +35°C – +40°C |
6 min |
2 hours |
| +30°C – +35°C |
8 min |
4 hours |
| +25°C – +30°C |
12 min |
6 hours |
| +20°C – +25°C |
18 min |
8 hours |
| +15°C – +20°C |
25 min |
12 hours |
| +10°C – +15°C |
40 min |
18 hours |
| +5°C – +10°C* |
2.5 hours |
24 hours |
*Minimum cartridge temperature: +10°C.
Application Steps
SUBSTRATE QUALITY
Mortar and concrete must be at the required design strength. Substrate tensile / compressive strengths (concrete, masonry, natural stone) must be confirmed by testing. The anchor hole must always be clean, dry, free from oil and grease etc. Loose particles must be removed from the holes. Threaded rods and rebar’s must be cleaned thoroughly and free from dirt, oil, grease, corrosion products or any other substances and particles which could affect adhesion.
MIXING
preparaing cartridge 300ml
- Unscrew and remove the cap
- Cut the end off the protective film
- Screw on the static mixer
- Place the cartridge into the application gun ready for use
preparing cartridge 385 & 585 ml
- Unscrew the cap
- Remove the cap
- Screw on the static mixer
- Place the cartridge into the application gun ready for use
- When the work is interrupted the static mixer nozzle can remain on the cartridge after the gun pressure has been released. If the resin has hardened in the nozzle when work is resumed, a new nozzle must be attached.
Cleaning of Equipment
Clean all tools and application equipment immediately after use with Sika Colma Cleaner. Hardened material can only be removed mechanically.
