Multi-Purpose, Self-Smoothing Epoxy Resin Coating
Sikafloor-264 is a two-part, coloured, high-build, self-smoothing epoxy resin coating supplied in a convenient 20kg kit that includes two pigment packs for easy colouration. This versatile epoxy coating is used in various roller-applied and self-levelling flooring systems for industrial, commercial, and residential applications.
Uses:
Sikafloor-264 is ideal for use in:
- Manufacturing facilities
- Car park decks (intermediate and basements)
- Automotive workshops
- Clean rooms
- Amenities areas
- Educational trade facilities
- As a base coat for Vinyl Flake systems
- As scratch coats
- As a clear primer without pigment (refer to Sikafloor 161 PDS)
Characteristics / Advantages:
- Good chemical and mechanical resistance
- Easy application
- Liquid proof
- Gloss finish
- Slip-resistant surface possible
- Low VOC
Approvals / Certificates:
- VOC compliance as per Australian Standards Test ASTM D3960 Green Star V2 IEQ-13 and V1 IEQ-11
- Textures comply with P Ratings - Australian Standard AS 4586- 2013
- Particle and Outgassing emission certificates (ISO 14644-1 class 4 & GMP class A, ISO 14644-8 class 6,5)
- Good biological Resistance (ISO 846)
- Fire classification (EN 13501-1)
- Synthetic resin screed material (EN 13813:2002, CE marked)
- Coating for surface protection of concrete (EN 1504-2:2004, CE marked)
- ISEGA Certificate of Conformity for food contact

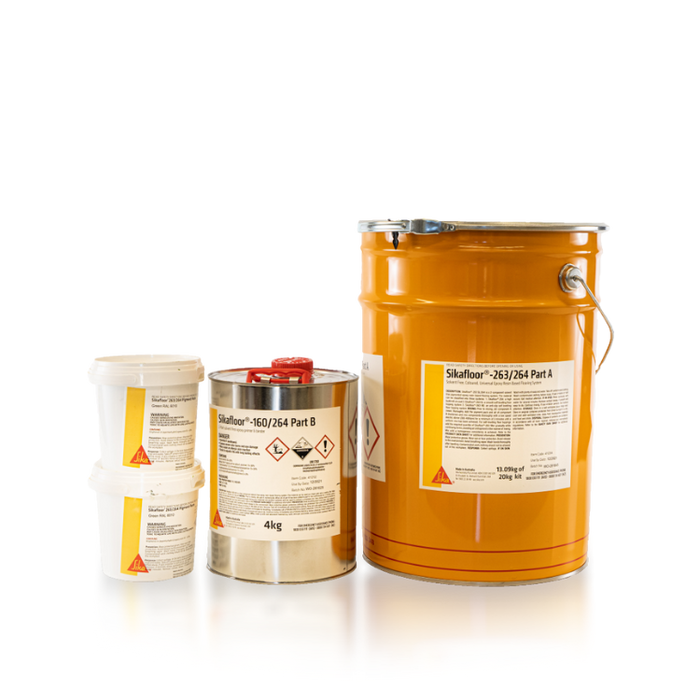

Product Information (20kg Kit with 2 x 1.15kg Pigment Packs):
-
Composition: Epoxy
-
Packaging:
- Part A: 13.09 kg (resin)
- Part B: 4.0 kg (hardener)
- Pigment: 2 x 1.15 kg
- Total Ready to Mix Kit: 19.40 kg (14.6 L)
-
Shelf life: 12 months from date of production
-
Storage conditions: Dry conditions between +5 °C and +30 °C in original, unopened packaging
-
Appearance and colour: Resin (coloured liquid), Hardener (transparent liquid), Extended colour range (RAL colours available)
-
Density (Mixed resin): ~ 1.43 kg/l (at +23 °C)
-
Solid content by mass/volume: ~100 %
Technical Information (Typical values at +23 °C):
-
Shore D Hardness (7 days): ~76 (DIN 53 505)
-
Abrasion resistance (7 days): ~35 mg (CS 10/1000/1000) (DIN 53109)
-
Compressive strength (28 days): ~53 N/mm² (Resin filled 1:0.9 with F34) (EN196-1)
-
Tensile strength in flexure (28 days): ~20 N/mm² (Resin filled 1:0.9 with F34) (EN 196-1)
-
Tensile adhesion strength: > 1,5 N/mm² (failure in concrete) (ISO 4624)
Application Information:
-
Mixing ratio (A:B by weight): 79 : 21 (3.8 : 1)
-
Mixing ratio (A:B by volume): 2.4 : 1
-
Ambient air/Substrate temperature: +10 °C min. / +30 °C max.
-
Relative air humidity: 80 % r.h. max.
-
Substrate moisture content: < 4 % pbw (refer to datasheet for priming requirements for higher moisture)
-
Pot Life (at +20 °C): ~ 25 minutes
-
Curing time (at +20 °C): Foot traffic ~ 24 hours, Light traffic ~ 4 days, Full cure ~ 7 days
Important Considerations:
- Do not apply on substrates with rising moisture.
- Protect freshly applied coating from damp, condensation, and water for at least 24 hours.
- Ensure proper substrate preparation and crack treatment.
- For exact colour matching, use the same batch numbers.
Application Instructions:
Substrate Quality / Pre-treatment: Concrete must be sound (min. 25 N/mm² compressive strength, 1.5 N/mm² pull off), clean, dry, and free of contaminants. Prepare mechanically to achieve an open textured surface. Prime as needed (Sikafloor 161 for < 6% moisture, Sikafloor EpoCem for higher moisture).
Mixing: Stir Part A, add Part B, and mix for 3 minutes. Add pigment and mix for another 2 minutes until uniform. Avoid overmixing.
Application: Apply primer if required. Apply Sikafloor-264 as a coating by roller or as a self-smoothing layer/seal coat by squeegee and back-rolling. Ensure even coverage. Clean tools immediately with Thinner C.
Cleaning of Equipment: Clean all tools with Thinner C immediately after use. Cured material can only be removed mechanically.
Recommended Preparation Method
Preparation is the key to achieving a long-lasting floor-coating system
Diamond grinding is recommended method of preparing new & old substrates prior to applying Sikafloor 264 20 kg Kit
The purpose behind concrete grinding is to remove any flaking paint and other types of contamination to achieve a clean surface as well as remove any sealer or curing agent and open concrete pores allowing 1st coat of Sikafloor 264 to penetrate deep into the surface and seal the floor.
Acid Etching might be used as an alternative option to prepare the floor for more information on how to acid etch your floor click here to be directed to an external blog. Hydrochloric acid can be purchased from pool shops or local hardware stores.
Recommended diamond tooling grits to prepare the floor prior to applying Sikafloor 264 20kg Kit
Consumption Coverage Guide| 20 kg pigmented SIKA EPOXY kit applied using a 11 – 12 mm nap roller
-
Up to 30 m²
-
First coat: 10 kg
-
Second coat: 9 kg
-
Recommended: Two coats
-
Required kits: 1
-
30–60 m²
-
First coat: 19 kg
-
Second coat: 19 kg
-
Recommended: Two coats
-
Required kits: 2
-
60–90 m²
-
First coat: 29 kg
-
Second coat: 29 kg
-
Recommended: Two coats
-
Required kits: 3
Notes
- Please use the table above as a guide only, as the consumption could depend on the application method/style and porosity of the surface.
- Applying additional coats to the floors subject to heavy traffic is recommended
- Thin down the first coat by adding 5%- 7% of general-purpose thinners
- A slip-resistance surface covering can be achieved by adding anti-slip media
Guide to achieving R or P rated slip resistance floor covering using different grit anti-slip media
